Binary Decoder:

It is a combinational logic circuit that converts 'n' number of input lines to a maximum of 2 power n possible output lines.

Each output will  be activated for for only one possible combination of inputs

Types:

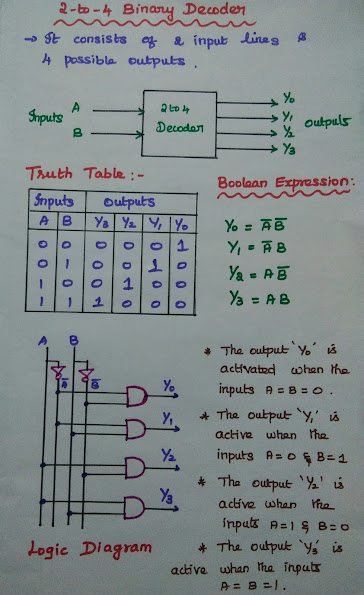

  • 2 to 4 Decoder
  • 3 to 8 Decoder (Binary to Octal Decoder)
  • 4 to 16 Decoder
Applications:
    Binary decoder is widely used in Data Multiplexing, Digital Display, Code Converters, Memory addressing, etc.,


Video lecture for this topic is available in my YouTube Channel:  https://www.youtube.com/c/PadmasriNaban
