Priority Encoder:

It is a n encoder that includes the priority function

It two or more inputs are equal to 1 at the same time, the input having the highest priority will take the precedence.

'D3" is assigned with the highest priority

"D2" is assigned with the lowest priority\

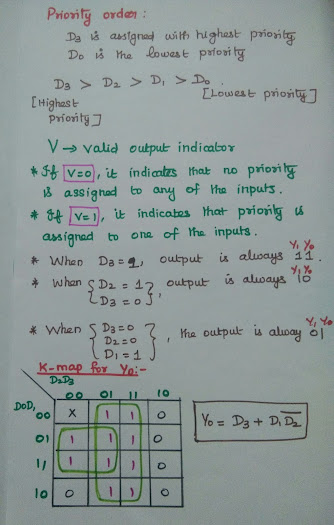

Priority Order:

D3 > D2 > D1 > Do
